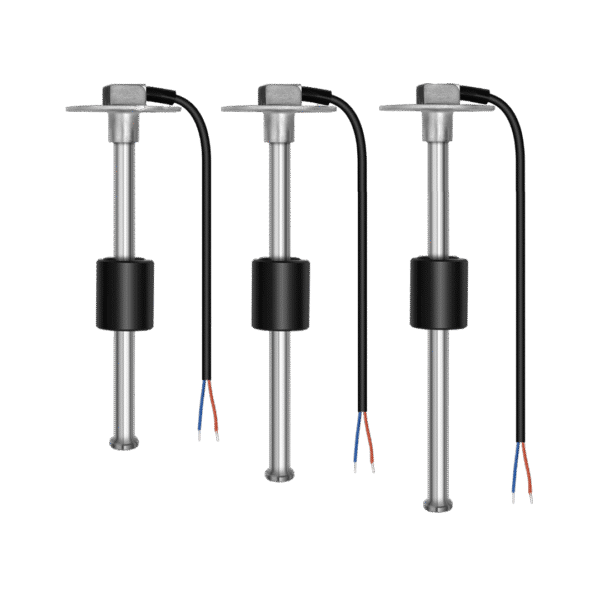

Stainless Steel Fuel Sending Unit
Ensure accurate fuel measurement on your boat, truck, or camper with the Frimarine Stainless Steel Fuel Sending Unit. Designed as a direct replacement for arm-type senders, this SAE 5-hole standard unit delivers reliable performance, long service life, and excellent resistance to shock and corrosion. With this fuel level sensor, you always know exactly how much gasoline, diesel, or water remains, keeping your journeys safe and stress-free.
The stainless steel construction ensures durability in harsh conditions. Additionally, the fuel sending unit provides accurate readings even when the vehicle or boat experiences constant movement from waves, rocking, or uneven roads. The fuel gauge remains stable, eliminating incorrect or bouncing readings. This unit supports 240–33 ohm (12V–24V) fuel level gauges, giving you flexibility across multiple applications.
Specifications:
-
High-quality stainless steel construction for corrosion and shock resistance
-
SAE 5-hole standard, direct replacement for arm-type sender
-
Multiple sizes available: 6″, 8″, 10″, 12″, 14″, and 16″
-
Maximum operating voltage: 12V
-
Supports 240–33 ohm (12V–24V) fuel level gauges
-
Accurate readings under movement or rocking conditions
Installation Recommendations:
The Frimarine Fuel Sending Unit is easy to install in approximately 15 minutes. To prevent the sender from hitting the bottom of the tank, select a length 2″ shorter than the tank depth. The float diameter measures 1.38″ (35 mm), and if drilling a hole, a 1.50″ (38 mm) diameter works perfectly. Align the notch arrow with the wire position, and the installation is complete.
